2 HOUR
STAINLESS STEEL
FIRE RATED
ROLLER SHUTTERS
Boundary fire shutters
CSIRO approved heat activated shutters
Tested and Certified to AS1530.4-2014
Controlled descent release mechanism
-/120/- Fire resistant level - FRL
Australian made, owned & operated
KEY FEATURES
-
Interlocking 304 grade stainless steel slats 75mm high
-
75mm wide 304 Stainless steel side tracks.
-
Australian made in Revesby NSW
-
Tested and Certified by the CSIRO in August 2022 to the latest standard 2014.
-
Certified FRL -/120/- and fit for purpose to the building code of Australia
-
Compliant with AS1530.4-2014 Section 7
-
Compliant with AS 1905.2
-
Compliant with Building Code of Australia D2.19 and C3.4
-
All shutters come with a Certificate of Compliance and Metal ID label attached.
-
Can be installed internally or externally with fire resistance FRL -/120/- from either direction.
-
Tested at CSIRO furnace to conditions over 1100 degrees Celsius and pressure of 7 Pa
-
Total size for fusible link auto Deploy fire shutters is maximum 7m2.
-
Controlled Automatic closure when activated in a Fire event via a 73 Deg Celsius Fusible link release system, to prevent fire spreading.
-

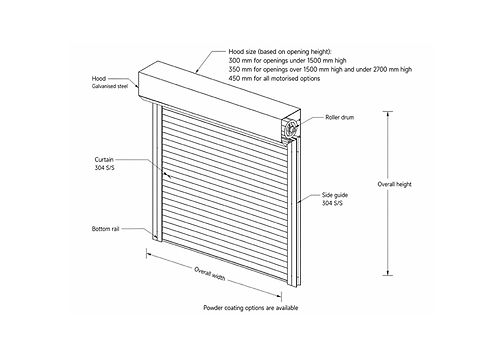

Pelmet Headroom requirements for fusible link auto deploy fire shutters:
-
300mm for windows <1500mmH
-
350mm for windows >1500mmH and <2700mmH
-
450mm for all motorised options
-
Side room requirements:
-
80mm on both sides for manual operation
-
100mm on both sides for electric operation
-
240V or 415V operation available
-
Standard colour is galvanised steel pelmet with 304 stainless steel curtain and tracks.
CSIRO 2 HOUR TEST
AUTO DEPLOY FIRE SHUTTERS
Pelmet Headroom requirements for fusible link auto deploy fire shutters:
-
300mm for windows <1500mmH
-
350mm for windows >1500mmH and <2700mmH
-
450mm for all motorised options
Side room requirements:
-
80mm on both sides for manual operation
-
100mm on both sides for electric operation
240V or 415V operation available
